Description

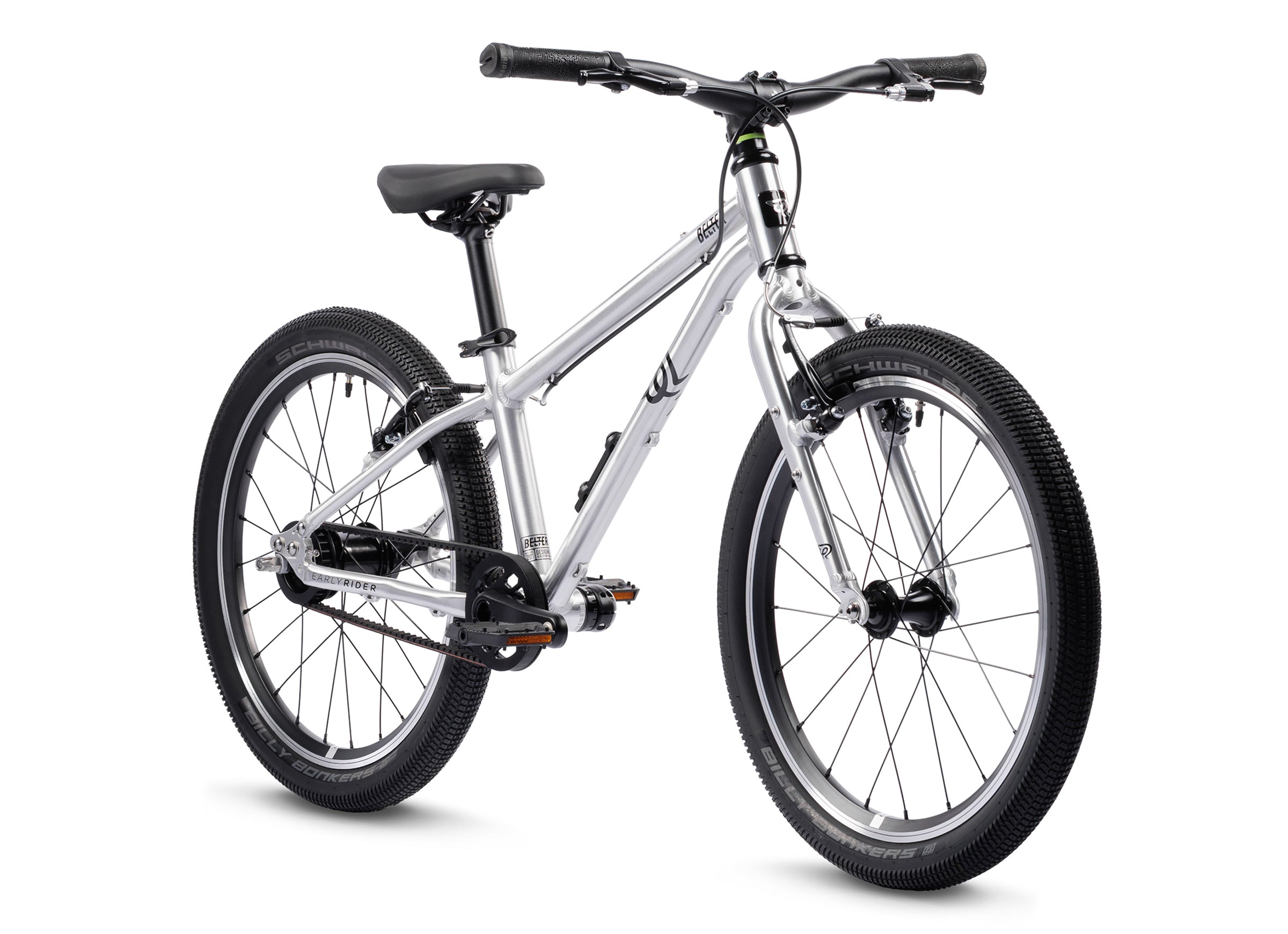

early rider 20 schutzblech Belter 20 Kids Bike | 20" Childrens BikeTurn heads as well as corners. The Belter 20 elevates the ride to school to a whole new level as style meets functionality. An internal geared hub means no maintenance and if your kids have a tendency to 'rest' their bike on the pavement, there's no fragile derailleur to put them out of action. The Sturmey hub is remarkably smooth too and with 4 gears inside its bombproof shell, it goes as well as it looks. No mech, no greasy cogs just beautiful clean
Turn heads as well as corners.
The Belter 20 elevates the ride to school to a whole new level as style meets functionality. An internal geared hub means no maintenance and if your kids have a tendency to 'rest' their bike on the pavement, there's no fragile derailleur to put them out of action. The Sturmey hub is remarkably smooth too and with 4 gears inside its bombproof shell, it goes as well as it looks. No mech, no greasy cogs just beautiful clean lines and a super clean ride.
A characteristically lightweight build, comfortable geometry and effortless belt drive it makes light work of those backpack laded rides to school. And, when it comes to bikeability, the custom Ritchey controls will certainly provide a much appreciated level of confidence. This bike is about looking great and feeling great.
ASSEMBLY INSTRUCTIONS:
Your bike will arrive carefully packaged and boxed with the rear wheel attached. The front wheel will need attaching using the bolts supplied and front brake re-engaged. The handlebar will be ziptied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.
[Left column]
INSIDE LEG
52CM
FRAME
HAND BRUSHED AL6061, FORGED DROP OUTS
FORK
HAND BRUSHED AL6061, FORGED DROP OUTS
STEERER TUBE
AL6061
CRANKS
CNC'D AL6061, 120MM
PEDALS
ER AL6061, CAGE, CARTRIDGE BEARING
BOTTOM BRACKET
ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING
RIMS
20 X 24H FRONT, 28H REAR, DOUBLE WALLED AL6061
REAR HUB
STURMEY ARCHER X-RF4, 4SP IGH
FRONT HUB
CNC’D AL6061, HOLLOW 7075 AXLE
BELT
GATES POWERGRIP 976
FRONT SPROCKET
CNC'D AL6061, 46T, AL6061 AXLE
REAR SPROCKET
CNC'D AL7075, 32T
*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*
CLICK HERE TO VIEW THE USER MANUAL
[Right column]
WEIGHT
8.0KGS W/O PEDALS
SHIFTER
STURMEY IGH TWIST SHIFT
BRAKES
TEKTRO 837AL
LEVERS
TEKTRO SHORT REACH, JL-510TS
FRONT TYRE
MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE
REAR TYRE
MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE
HEADSET
1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM
RITCHEY OS FORGED AL6061, 35MM REACH
BARS
560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE
GRIPS
ER WING 120L, 70R
SEAT POST
RITCHEY, AL6061, 25.4MM x 250MM
SADDLE
ER WINGED
SEAT CLAMP
ER BOLT, 28.6MM
[Table]
| STANDOVER HEIGHT | 52CM |
| FRAME | HAND BRUSHED AL6061, FORGED DROP OUTS |
| FORK | HAND BRUSHED AL6061, FORGED DROP OUTS |
| STEERER | TUBE AL6061 |
| CRANKS | CNC'D AL6061, 120MM |
| PEDALS | ER AL6061, CAGE, CARTRIDGE BEARING |
| BOTTOM BRACKET | ER EXTERNAL CUP, THREADED, SEALED CARTRIDGE BEARING |
| RIMS | 20 X 24H FRONT, 28H REAR, DOUBLE WALLED AL6061 |
| REAR HUB | STURMEY ARCHER X-RF4, 4SP IGH |
| FRONT HUB | CNC’D AL6061, HOLLOW 7075 AXLE |
| AXLES | AL6061 |
| BELT | GATES POWERGRIP 976 |
| FRONT SPROCKET | CNC'D AL6061, 46T, AL6061 AXLE |
| WEIGHT | 8.0KGS W/O PEDALS |
| REAR SPROCKET | CNC'D AL7075, 32T |
| BRAKES | TEKTRO 837AL |
| LEVERS | TEKTRO SHORT REACH, JL-510TS |
| FRONT TYRE | MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE |
| REAR TYRE | MAXXIS DTH 20 x 1.95 120tpi FOLDING TYRE |
| HEADSET | 1 1/8” CARTRIDGE BEARING, CONVENTIONAL |
| STEM | RITCHEY OS FORGED AL6061, 35MM REACH |
| BARS | 560MM RITCHEY OS DOUBLE BUTTED AL6061, 18MM RISE |
| GRIPS | ER WING 120L, 70R |
| SEAT POST | RITCHEY, AL6061, 25.4MM x 250MM |
| SADDLE | ER WINGED |
| SEAT CLAMP | ER BOLT, 28.6MM |
| SPEC NOTICE | Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice |
[Table spec]
| A | Wheelbase | 838mm | |
| B | Head Angle | 69.5° | |
| C | Seat Tube Length | 280mm | |
| D | Chainstay Length | 331.5mm | |
| E | Seat Tube Angle | 73° | |
| F | Standover Height | 515mm | |
| G | Top Tube Length | 448mm | |
| H | Head Tube Length |
92mm | |
| I | Stack |
397.5mm | |
| J | Reach |
326mm | |
| K | Fork Length | 310mm |
